Ray tracing from ground up

I absolutely love computer graphics and since many years I have been dreaming of working on something with it.

Well that time is now, I decided to build a ray tracing renderer from the ground up.

I will document my journey here, loosely, making a post when I feel like it.

There are many excellent tutorials that do a great job at explaining the foundations and ray tracing and photorealistic rendering, therefore I will not attempt to be thorough on every such detail, but I’ll rather link to resources I used.

I will be using C++20, Cmake and manage dependencies with Conan. The code should work on any common operating system.

CPU ray tracing

My first goal is to be able to render a version of the Cornell Box using the CPU.

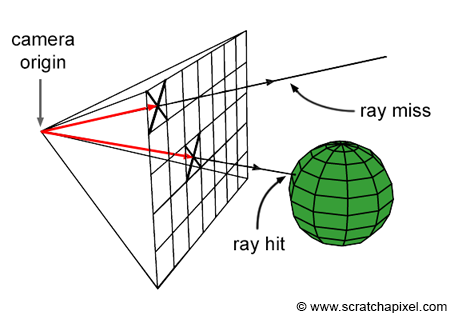

The plan is simple, I define a camera, generate rays from each pixel, test if the rays intersect the scene.

Illustration courtesy of Scratch a Pixel (link).

Helper classes

I created basic linear algebra classes such as 2D and 3D vectors to be able to describe other constructs more concisely. For details check out the source code.

Ray

To represent a ray of light I need to know its current position and direction of travel.

struct Ray
{
    Vec3 p;
    Vec3 v;
};

Camera

The camera is characterized by its resolution, physical pixels size and a simple pinhole calibration model.

Let’s start with the intrinsics:

struct Intrinsics
{
    float focal_length;
    Vec2 center;
};

And use it to define the camera:

struct Camera {
    Intrinsics intrinsics;
    Size2i resolution;
    Size2f physical_pixel_size;
};

With this in hand we can generate rays going out from the camera:

Ray cameraRay(const Camera &cam, Vec2 pixelCoord)
{
    const auto pixelCenter = pixelCoord + Vec2{0.5, 0.5};
    const auto physicalPixelCenter = pixelCenter * cam.physical_pixel_size - cam.intrinsics.center;

    const auto dir = physicalPixelCenter / cam.intrinsics.focal_length;

    return Ray{
        .p = Vec3{0,0,0},
        .v = Vec3{dir.x, dir.y, 1}
    };
}

Objects

I can now send out rays, but there’s nothing that those rays could hit.

Let’s add a simple primitive:

struct Sphere
{
    Vec3 center;
    float radius;
};

The sphere is characterized by its center and radius.

Intersection

To encode information about a ray hitting a surface, I created an intersection class:

struct Intersection
{
    float t;
    Vec3 p;
};

For now it only stores how far the ray has to travel to hit the surface and the physical point where the hit occurs. Later I will add more information to this class.

Now I need to be able to test if one of my rays intersects a sphere. Instead of duplicating existing work I will just link to Scratch a Pixel on how to find the intersection.

The interface to the intersection test functions:

std::optional<Intersection> getIntersection(const Ray &ray, const Sphere &sphere);

It returns std::nullopt if the ray misses all objects.

Later when I have more kinds of objects I plan to store them in an std::variant, thus avoiding virtual functions. I expect this to be useful when I implement a CUDA backend.

Rendering

With all the above building blocks we are ready to render our first image. Let’s simply create a camera with 14mm focal length, 14.9um pixel size and a modest 640x640 resolution.

Let’s also create a sphere we can test against:

const auto s = Sphere{
    .center = Vec3{0, 0, 2},
    .radius = 300e-3,
};

The actual rendering is then an iteration over all pixels, casting a ray from that pixel using the camera and testing if it intersects the sphere.

for (int y=0;y<resolution.width;++y)
{
    for (int x=0;x<resolution.width;++x)
    {
        const auto ray = cameraRay(camera, Vec2{x, y});
        const auto intersection = getIntersection(ray, s);

        if (intersection.has_value())
        {
            setPixel(x, y, Color::WHITE);
        }
        else
        {
            setPixel(x, y, Color::BLACK);
        }
    }
}

Note that I omitted the image creation and pixel setting code. I used a plain array of 4 byte integers to store RGBA values, then saved them into a PNG at the end using stb_image.

The result

Our first ray traced sphere!

I got to cast rays from a virtual camera and test if they intersect a sphere. I am thrilled to continue this journey, next I will probably add more primitives and UV coordinates.
